What Is a 4.5kg Fire Extinguisher? Uses, Size & Fire Rating
A 4.5kg fire extinguisher is a medium-to-large portable extinguisher designed to provide greater extinguishing capacity than smaller 1kg or 2kg units.
In Australia, 4.5kg extinguishers are commonly available as ABE dry chemical powder extinguishers, which can provide protection against Class A fires involving ordinary combustibles, Class B fires involving flammable liquids, and fires involving energised electrical equipment when the extinguisher is appropriately rated.
The important point is that 4.5kg describes the amount of extinguishing agent inside the extinguisher. It does not, by itself, tell you which types of fires the extinguisher can handle. The fire rating and label on the individual extinguisher determine its suitability.

What Does 4.5kg Mean on a Fire Extinguisher?
The 4.5kg refers to the approximate weight of the extinguishing agent contained inside the cylinder.
The complete extinguisher weighs more than 4.5kg because the total weight also includes the cylinder, valve, hose and other components.
For example, a 4.5kg ABE dry chemical powder extinguisher may have a total operating weight of around 7kg or more, depending on its design and manufacturer.
This is why extinguisher size should not be judged only by the number printed on the cylinder.
What Is a 4.5kg Fire Extinguisher Used For?
The answer depends on the extinguisher type and its certified fire rating.
A common Australian 4.5kg ABE dry chemical powder extinguisher can be suitable for:
Class A fires involving materials such as wood, paper, cardboard and textiles
Class B fires involving flammable liquids such as petrol, diesel, solvents and some paints
Energised electrical equipment, where the extinguisher is specifically rated for this application
A 4.5kg extinguisher may therefore be useful in environments where several different fire hazards are present.
However, the correct extinguisher should always be selected according to the actual fire risks present.

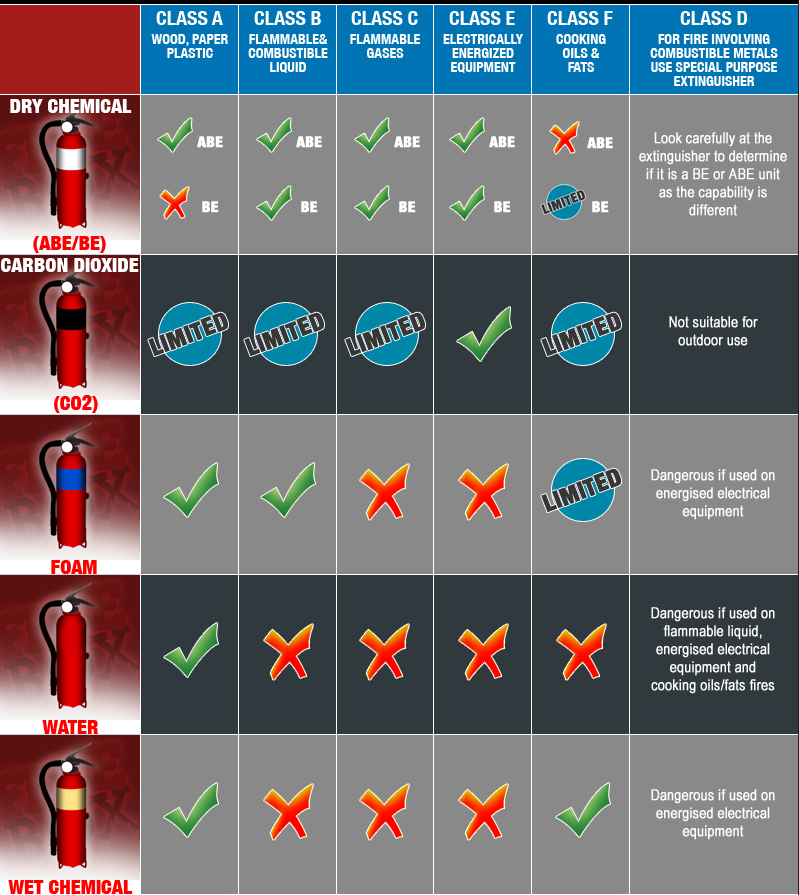

What Is an ABE Fire Extinguisher?
ABE refers to a dry chemical powder extinguisher designed to provide protection against particular fire hazards.
In Australian fire safety terminology, ABE powder extinguishers are commonly used for:
A – Ordinary combustibles
Examples include:
Wood
Paper
Cardboard
Textiles
Some plastics
B – Flammable liquids
Examples include:
Petrol
Diesel
Solvents
Paints
Other flammable liquids
E – Energised electrical equipment
This can include equipment such as:
Electrical switchboards
Machinery
Power tools
Appliances
Other energised electrical equipment
The exact fire rating should always be checked on the extinguisher label rather than assuming that every 4.5kg powder extinguisher has the same rating.

What Is the Fire Rating of a 4.5kg Fire Extinguisher?
Fire rating is different from extinguisher capacity.
The 4.5kg tells you the approximate amount of extinguishing agent.
The fire rating tells you how the extinguisher performed against specified test fires.
For example, a particular 4.5kg ABE extinguisher may have a rating such as:
6A:60B:C
However, ratings can vary between products and manufacturers.
This is why you should always check the product's certification and rating rather than assuming that every 4.5kg extinguisher has identical performance.
For Australian products, look for the relevant approval and certification information, including applicable Australian Standards.
How Big Is a 4.5kg Fire Extinguisher?
A 4.5kg extinguisher is considerably larger than the compact extinguishers commonly used for vehicles and smaller residential applications.
The physical dimensions vary between models, but a typical 4.5kg extinguisher can be around half a metre tall.
The total weight is also substantially higher than the agent weight because the cylinder and components add to the overall weight.
This makes a 4.5kg unit more suitable for locations where greater extinguishing capacity is required and where the extinguisher can be safely and conveniently accessed.
Where Are 4.5kg Fire Extinguishers Commonly Used?
Depending on the extinguisher type and fire rating, 4.5kg units can be found in environments such as:
Workshops
Workshops may contain combustible materials, machinery, fuels, solvents and electrical equipment.
Garages
Garages can contain vehicles, fuels, oils, tools and electrical equipment, creating several potential fire hazards.
Warehouses
Larger areas with combustible stock or equipment may require extinguishers with greater capacity.
Commercial Premises
Offices, retail premises and other workplaces may use different extinguisher types depending on their specific fire risks and applicable requirements.
Vehicles and Larger Transport
Some larger vehicles, trucks, caravans and specialised transport applications may use larger extinguishers where the risk assessment and applicable requirements call for them.
The correct size should always be determined by the fire risk, location and applicable Australian requirements rather than simply choosing the largest extinguisher available.

4.5kg vs 1kg and 2kg Fire Extinguishers
One reason people consider a 4.5kg extinguisher is the additional extinguishing capacity compared with smaller units.
1kg Fire Extinguisher
A 1kg extinguisher is compact and can be useful where portability and limited storage space are important.
It is commonly considered for applications such as:
Cars
Caravans
Boats
Small equipment
2kg Fire Extinguisher
A 2kg extinguisher provides more agent than a 1kg unit while remaining relatively portable.
It may be suitable for:
Homes
Garages
Small workshops
Vehicles
4.5kg Fire Extinguisher
A 4.5kg unit provides substantially more extinguishing agent and is therefore often considered for:
Workshops
Garages
Warehouses
Commercial premises
Higher-risk areas
However, bigger does not automatically mean better. The extinguisher needs to match the hazard, fire rating, accessibility requirements and the ability of users to handle it safely.
Is a 4.5kg Fire Extinguisher Suitable for Electrical Fires?
Some 4.5kg dry chemical powder extinguishers are specifically rated for fires involving energised electrical equipment.
The extinguisher label and fire rating should be checked before relying on it for this application.
Dry powder can be effective for electrical fire situations, but it leaves a powder residue that can contaminate equipment.
For sensitive electronic equipment such as computers, servers and some electrical installations, a CO2 extinguisher may be preferable because it does not leave the same powder residue.
Read our guide to [fire extinguishers for electrical fires] for more information about CO2 versus ABE extinguishers.

Can You Use a 4.5kg ABE Extinguisher on Cooking Oil?
A standard ABE dry chemical powder extinguisher should not be treated as the correct extinguisher for deep-fat fryer or large cooking-oil fires.
Cooking oil and fat fires require an extinguisher specifically designed for Class F hazards, such as a suitable wet chemical extinguisher.
Using the wrong extinguishing agent can create additional hazards, including splashing or spreading burning oil.
For more information about different fire classes, see our guide to [Class B fires] and our other fire safety resources.
Does a 4.5kg Fire Extinguisher Leave Residue?
Yes, if the extinguisher is a dry chemical powder type.
After discharge, powder can settle on:
Floors
Walls
Machinery
Vehicles
Electrical equipment
Other nearby surfaces
The residue should be cleaned appropriately after the fire has been made safe.
This is one reason CO2 extinguishers can be preferred in some environments containing sensitive electronic equipment.
How Long Does a 4.5kg Fire Extinguisher Discharge?
Discharge time varies according to the extinguisher model, operating pressure and design.
There is therefore no single discharge time that applies to every 4.5kg extinguisher.
Rather than relying on a generic number of seconds, check the manufacturer's specifications for the particular extinguisher.
More importantly, a portable extinguisher should only be used on a small fire that is still in its early stages, provided you have a clear escape route and it is safe to attempt firefighting.
How Do You Use a 4.5kg Fire Extinguisher?
If a fire is small enough to tackle safely and you have been trained to use an extinguisher, the commonly taught PASS method is:
Pull – Pull the safety pin.
Aim – Aim the nozzle or hose at the base of the fire.
Squeeze – Squeeze the handle to discharge the extinguishing agent.
Sweep – Sweep the discharge across the base of the flames.
Always keep an escape route behind you.
If the fire is growing, producing significant smoke, spreading rapidly or cannot be controlled immediately, evacuate and call emergency services.
How Should a 4.5kg Fire Extinguisher Be Stored?
A fire extinguisher should be:
Easy to see
Easy to reach
Accessible during an emergency
Protected from damage
Installed or mounted appropriately for its location
Maintained in accordance with applicable requirements
Do not place an extinguisher where it can easily become blocked by stock, vehicles, furniture or equipment.
The exact location and number of extinguishers required depends on the premises, hazards and applicable fire safety requirements.
4.5kg Fire Extinguisher: Key Points
A 4.5kg fire extinguisher is a substantial portable extinguisher that can provide greater extinguishing capacity than smaller 1kg and 2kg units.
The key points to remember are:
4.5kg refers to the approximate amount of extinguishing agent
The total extinguisher weight is higher than 4.5kg
A common 4.5kg option is an ABE dry chemical powder extinguisher
The actual fire rating depends on the specific product
Some 4.5kg extinguishers are suitable for energised electrical equipment
Standard ABE powder extinguishers are not the correct choice for Class F cooking-oil fires
Powder extinguishers leave residue after discharge
Larger extinguishers are not automatically suitable for every application
The correct extinguisher should be selected according to the actual fire hazards
Frequently Asked Questions
What does 4.5kg mean on a fire extinguisher?
The 4.5kg refers approximately to the weight of the extinguishing agent inside the extinguisher. The complete extinguisher weighs more because the cylinder, valve, hose and other components are included.
What is a 4.5kg fire extinguisher used for?
Its use depends on the extinguisher type and fire rating. A 4.5kg ABE dry chemical powder extinguisher can provide protection against Class A and Class B fires and, where appropriately rated, energised electrical equipment.
Is a 4.5kg extinguisher better than a 2kg extinguisher?
Not necessarily. A 4.5kg extinguisher contains more extinguishing agent, but the correct size depends on the fire risk, location, required fire rating and whether users can safely handle the extinguisher.
How much does a 4.5kg fire extinguisher weigh?
The total weight is greater than 4.5kg because 4.5kg refers to the extinguishing agent. The complete weight varies between models.
Can a 4.5kg ABE extinguisher be used on electrical fires?
Some ABE extinguishers are specifically rated for energised electrical equipment. Always check the rating and manufacturer's instructions before use.
Can a 4.5kg ABE extinguisher be used on cooking oil?
A standard ABE powder extinguisher should not be relied upon for deep-fat fryer or large cooking-oil fires. Class F fires require the appropriate extinguisher, commonly wet chemical.
What is the difference between 4.5kg and 9kg extinguishers?
A 9kg extinguisher contains approximately twice as much extinguishing agent as a 4.5kg unit, but the correct choice depends on the hazard, required fire rating, location and applicable fire safety requirements.
Does a 4.5kg powder extinguisher leave residue?
Yes. Dry chemical powder leaves residue after discharge and may require significant cleanup. Powder can also be unsuitable for sensitive electronic equipment because of contamination.
How often should a 4.5kg fire extinguisher be maintained?
Maintenance requirements depend on the application and applicable Australian requirements. Extinguishers should be inspected and maintained according to the relevant standards, manufacturer's instructions and the requirements applying to the premises.
Where can I buy a 4.5kg ABE fire extinguisher?
If you need a specific 4.5kg ABE extinguisher, see our 4.5kg ABE Dry Chemical Powder Fire Extinguisher product page for the current product specifications, certification, fire rating and available options.
Final Thoughts
A 4.5kg fire extinguisher provides more extinguishing capacity than smaller portable units and is commonly used where a greater level of fire protection is required.
However, the 4.5kg size alone does not determine what fires an extinguisher can safely tackle. Always check the extinguisher's fire rating, type, certification and manufacturer's instructions.
For general information about ABE dry chemical powder extinguishers, see our ABE dry chemical powder fire extinguishers guide. If you are specifically looking for a 4.5kg ABE unit, visit our 4.5kg ABE fire extinguisher product page.

Disclaimer: This blog post provides general fire safety information. Always follow manufacturer instructions for specific products and consult with fire safety professionals for comprehensive risk assessment and safety planning.
